| YEL | 210-115 | 2FCW |
|---|---|---|

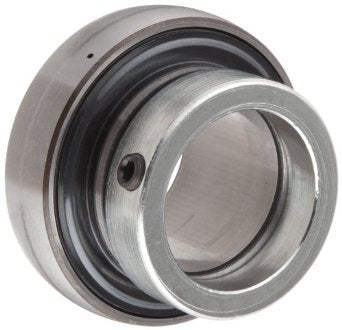

| Y-Bearing with Eccentric Locking Collar | Inch Shaft | Contact Standard Integral Seal with Plain Flinger on Both Sides, Cylindrical Outside Diameter, Without Lubrication Hole |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | D | B1 | C | d1 | d2 | s1 |
| 49.213 | 90 | 62.7 | 22 | 62.5 | 67.2 | 38.1 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 1 | 35.1 | 23.2 | 0.98 | 4000 | 0.94 |
