| YEL | 208-108 | 2FW |
|---|---|---|

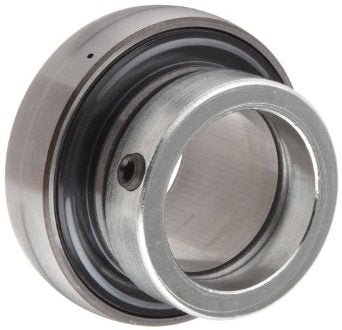

| Y-Bearing with Eccentric Locking Collar | Inch Shaft | Contact Standard Integral Seal with Plain Flinger on Both Sides, Without Lubrication Hole |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | D | B1 | C | d1 | d2 | s1 |
| 38.1 | 80 | 56.3 | 21 | 51.8 | 56.5 | 34.9 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 1 | 30.7 | 19 | 0.8 | 4800 | 0.77 |
