| YAT | 209 | |
|---|---|---|

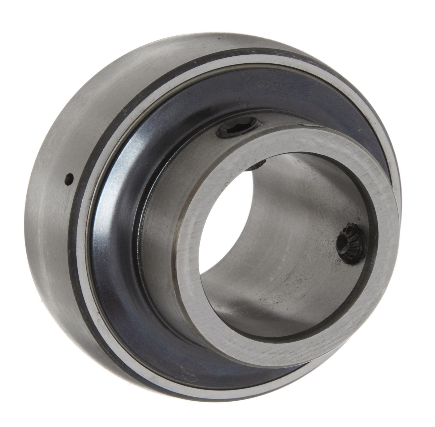

| Y-Bearing with Grub Screw | Metric Shaft | Contact Standard Integral Seal |
| Dimensions (mm) | |||||
|---|---|---|---|---|---|
| d | D | B | C | d1 | s1 |
| 45 | 85 | 37 | 22 | 56.8 | 25.8 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 1 | 33.2 | 21.6 | 0.915 | 4300 | 0.48 |
