| YAT | 206 | |
|---|---|---|

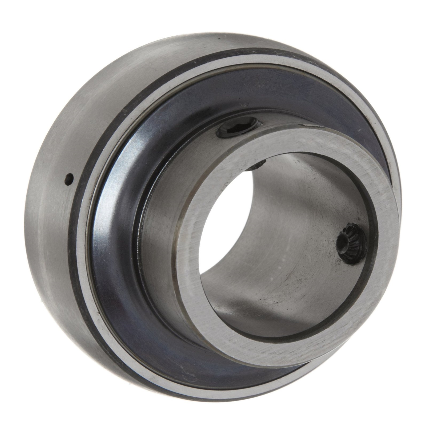

| Y-Bearing with Grub Screw | Metric Shaft | Contact Standard Integral Seal |
| Dimensions (mm) | |||||
|---|---|---|---|---|---|
| d | D | B | C | d1 | s1 |
| 30 | 62 | 30.2 | 18 | 39.7 | 21 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 0.6 | 19.5 | 11.2 | 0.475 | 6300 | 0.23 |
