| YAR | 208-108 | 2RF |
|---|---|---|

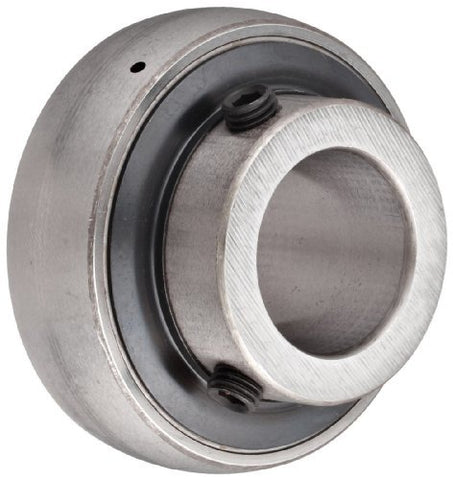

| Y-Bearing with Grub Screw | Inch Shaft | Contact Standard Integral Seal with Rubberized Flinger on Both Sides |
| Dimensions (mm) | |||||
|---|---|---|---|---|---|
| d | D | B | C | d1 | s1 |
| 38.1 | 80 | 49.2 | 21 | 51.8 | 30.2 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 1 | 30.7 | 19 | 0.8 | 2800 | 0.59 |
