Product Description

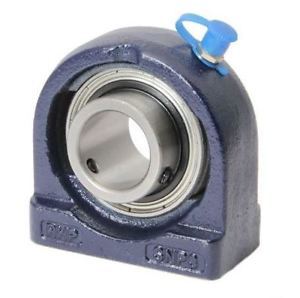

This SNP40 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 40mm Shaft Diameter.
| SNP | 40 | 1040-40G | 6 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 40mm Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

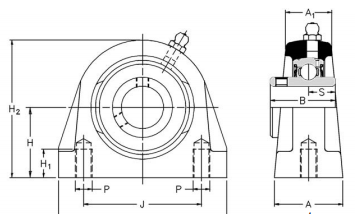

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 118 | 49.2 | 19.5 | 101.7 | 88.9 | M12x1.75 | 47 | 32 | 49.2 | 41.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 43.73 | 56.33 | 19.03 | 11.03 | 21.43 | 32500 | 19900 | 4000 | 2.8 |
