Product Description

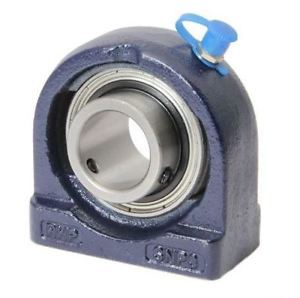

This SNP35 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 35mm Shaft Diameter.
| SNP | 35 | 1035-35G | 5 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 35mm Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

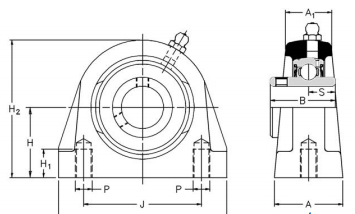

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 110 | 47.6 | 19.5 | 95.6 | 82.6 | M10x1.5 | 45 | 30 | 42.9 | 34.9 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 38.93 | 51.13 | 17.53 | 9.53 | 18.83 | 25700 | 15300 | 4500 | 2.4 |
