Product Description

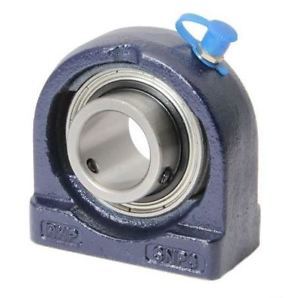

This SNP2 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 2 Inch Shaft Diameter.
| SNP | 2 | 1055-2G | 9 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 2 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

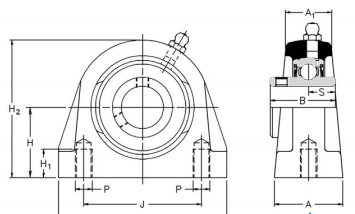

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 150 | 63.5 | 26.5 | 130 | 118 | M16x2 | 60 | 41.5 | 55.6 | 0 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 0 | 71.42 | 22.24 | 0 | 27.84 | 43500 | 29200 | 3100 | 4 |
