Product Description

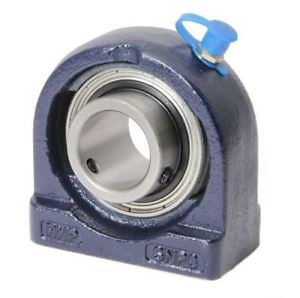

This SNP2.7/16 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 2.7/16Inch Diameter.
| SNP | 2.7/16 | 1060-2.7/16G | 10 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 2.7/16 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

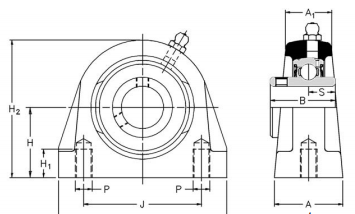

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 154 | 69.9 | 26.5 | 141.5 | 118 | M16x2 | 60 | 41.5 | 65.1 | 0 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 0 | 77.84 | 25.44 | 0 | 31.04 | 48000 | 33000 | 2800 | 4.6 |
