Product Description

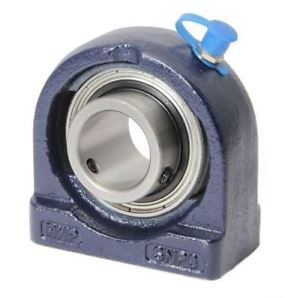

This SNP1.3/4 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 1.3/4 Inch Diameter.
| SNP | 1.3/4 | 1045-1.3/4G | 7 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 1.3/4 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

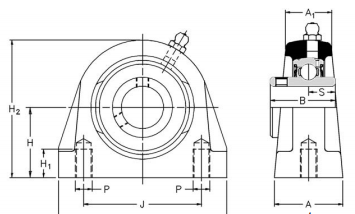

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 127 | 54 | 19.5 | 110 | 95.3 | M12x1.75 | 48 | 33 | 49.2 | 41.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 43.73 | 56.33 | 19.04 | 11.04 | 21.43 | 32500 | 20500 | 3700 | 3.5 |
