Product Description

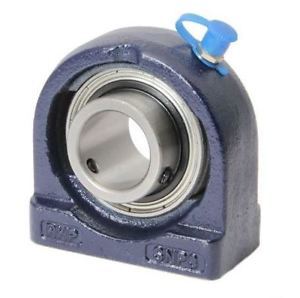

This SNP1.3/16 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 1.3/16 Inch Diameter.
| SNP | 1.3/16 | 1030-1.3/16G | 4 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 1.3/16 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

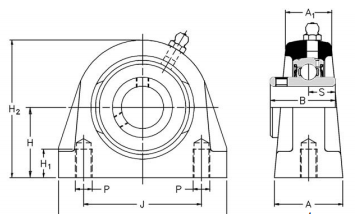

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 96 | 42.9 | 16.5 | 83.9 | 76.2 | M10x1.5 | 40 | 26.5 | 38.1 | 31.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 35.73 | 48.43 | 15.93 | 9.03 | 18.33 | 19500 | 11300 | 5300 | 1.8 |
