Product Description

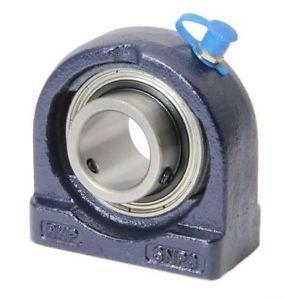

This SNP1.15/16 bearing is a Short Base Cast Iron Pillow Block Unit. The bearing's dimensions are 1.15/16 Inch.
| SNP | 1.15/16 | 1050-1.15/16G | 8 | |
|---|---|---|---|---|
| Self Lube Short Base Cast Iron Pillow Block | 1.15/16 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |

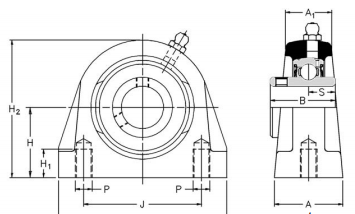

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | J | p | A | A1 | B | B1 |
| 135 | 57.2 | 23.5 | 115 | 101.6 | M16x2 | 54 | 35.5 | 51.6 | 43.5 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
|---|---|---|---|---|---|---|---|---|
| B2 | B3 | s | s1 | s2 | ||||
| 43.73 | 62.73 | 19.04 | 11.04 | 24.64 | 35000 | 23200 | 3400 | 3.3 |
