| SL | 60 | 1060-60G | 10 | |
|---|---|---|---|---|

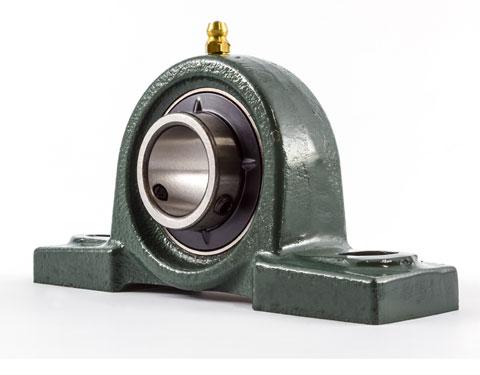

| Self Lube Pillow Block Unit | 60mm Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A | A1 | B |
| 240 | 68.25 | 24.6 | 140.6 | 201 | 176 | 16 | 70 | 46 | 65.1 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| B1 | B2 | B3 | s | s1 | s2 | ||||
| 0 | 0 | 77.84 | 25.44 | 0 | 31.04 | 48000 | 33000 | 2800 | 6.1 |
