| SFT | 40 | HLT | 1040-40G | 6 |
|---|---|---|---|---|

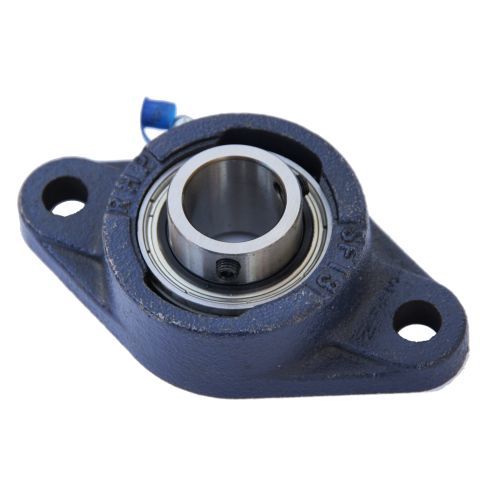

| Self Lube Cast Iron Flange Bearing Unit | 40mm Shaft Diameter | High/Low Temperature Insert | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | J | G | A | A1 | A2 | A3 | A4 | B |
| 101.6 | 171.4 | 143.5 | 12 | 34.9 | 54.18 | 56.62 | 58.9 | 12.7 | 49.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| B1 | B2 | B3 | s | s1 | s2 | ||||
| 41.2 | 43.73 | 56.3 | 19.03 | 11.03 | 21.43 | 32500 | 19900 | 4000 | 1.9 |
