| SFT | 1.5/8 | 1045-1.5/8G | 7 | |
|---|---|---|---|---|

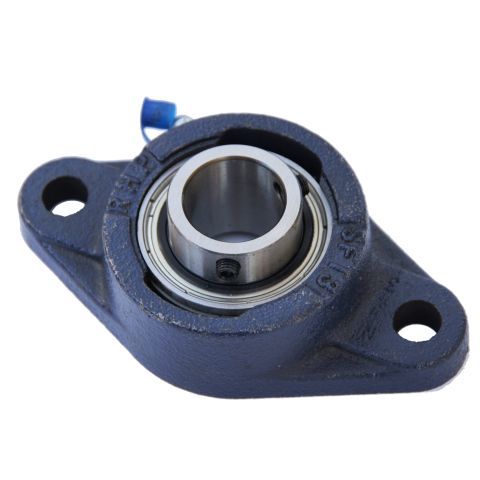

| Self Lube Cast Iron Flange Bearing Unit | 1.5/8 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | J | G | A | A1 | A2 | A3 | A4 | B |
| 111.1 | 179.4 | 148.5 | 16 | 35.3 | 54.18 | 56.62 | 58.9 | 14.3 | 49.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| B1 | B2 | B3 | s | s1 | s2 | ||||
| 41.2 | 43.73 | 56.33 | 19.04 | 11.03 | 21.43 | 32500 | 20500 | 3700 | 2.2 |
