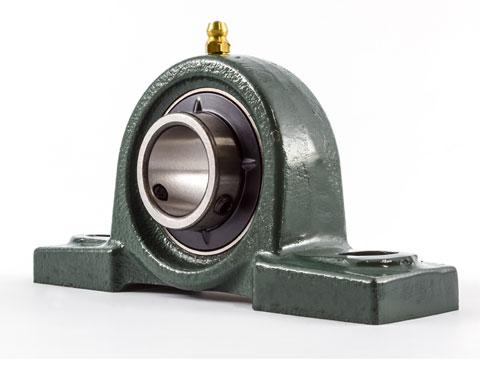

NP1045-1 1/2K RHP Pillow Block Adapter Sleeve (1 1/2 Inch Diameter)

  • Sale
  • Regular price £61.80


NP 10 45 1.1/2 K
Self Lube Pillow Block Unit Spherical Outside Diameter Basic Group 1.1/2 Inch Shaft Diameter Taper Sleeve Lock

HE309-1.1/2 1045KG 7
Sleeve Nut & Lockwasher Bearing Insert Casting Group

Bearing Insert Dimensions (mm)
L H H1 H2 J max J min G
1045KG 190.5 54 20 108 154.5 140.5 12

Dimensions (mm) Dynamic Load (N) Static Load (N) Max Speed (rpm) Weight (Kg)
A A1 B5 d4
54 35 39 65 32500 20500 3700 2.8
