NP | 1.1/8 | EC | 1230-1.1/8ECG | 4 |
---|---|---|---|---|

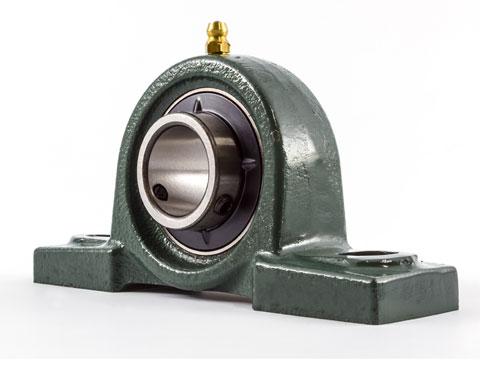

Self Lube Pillow Block Unit | 1.1/8 Inch Shaft Diameter | Eccentric collar lock with short inner ring | Bearing Insert | Casting Group 4 |
Dimensions (mm) | |||||||||
---|---|---|---|---|---|---|---|---|---|
L | H | H1 | H2 | J max | J min | G | A | A1 | B |
160.5 | 42.9 | 17.7 | 82.7 | 129.5 | 108.5 | 12 | 41.5 | 27.5 | 38.1 |
Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |||||
---|---|---|---|---|---|---|---|---|---|
B1 | B2 | B3 | s | s1 | s2 | ||||
31.2 | 35.73 | 48.43 | 15.93 | 9.03 | 18.33 | 19500 | 11300 | 5300 | 1.3 |
