| MSFT | 1 | 1030-1G | 1 | |
|---|---|---|---|---|

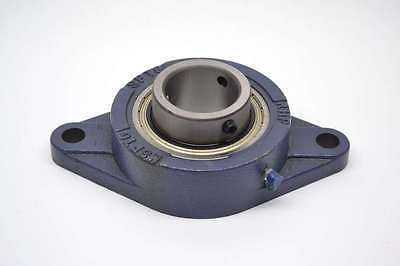

| Self Lube Cast Iron Flange Bearing Unit | 1 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| L | H | J | G | A | A1 | A4 |
| 82.6 | 141.3 | 116.5 | 10 | 29.8 | 42.21 | 12.7 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |
|---|---|---|---|---|---|
| B | s | ||||
| 38.1 | 15.93 | 19500 | 11300 | 5300 | 1.1 |
