MSFT | 1.3/4 | 1050-1.3/4G | 5 | |
---|---|---|---|---|

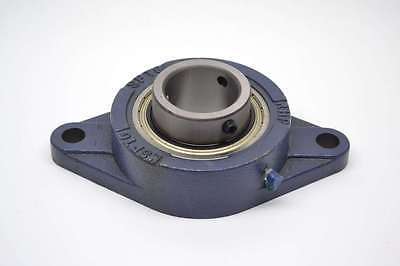

Self Lube Cast Iron Flange Bearing Unit | 1.3/4 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
Dimensions (mm) | ||||||
---|---|---|---|---|---|---|
L | H | J | G | A | A1 | A4 |
115.9 | 188.9 | 157 | 16 | 39.7 | 60.53 | 14.3 |
Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |
---|---|---|---|---|---|
B | s | ||||
51.6 | 19.04 | 35000 | 23200 | 3400 | 2.5 |
