| MP | 65 | HLT | 1075-65G | 9 |
|---|---|---|---|---|

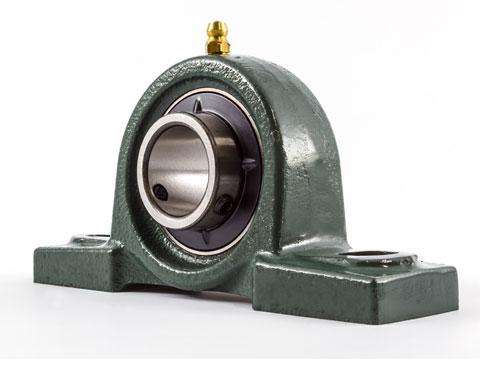

| Self Lube Pillow Block Unit | 65mm Shaft Diameter | High/Low Temperature Insert | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A |
| 330.2 | 88.9 | 28.6 | 177.8 | 255.6 | 206 | 24 | 88.9 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| A1 | B | s | ||||
| 66.7 | 77.8 | 33.34 | 66000 | 49500 | 2300 | 13.4 |
