| MP | 45 | HLT | 1050-45G | 5 |
|---|---|---|---|---|

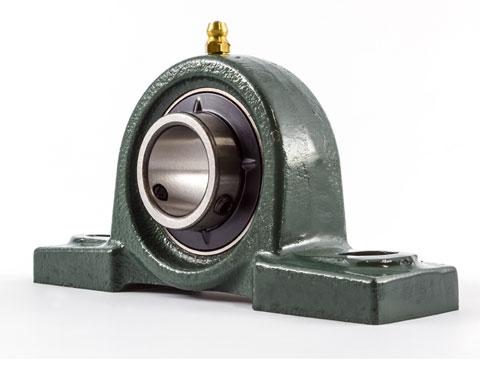

| Self Lube Pillow Block Unit | 45mm Shaft Diameter | High/Low Temperature Insert | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A |
| 222.2 | 58.72 | 22.5 | 116.7 | 172.5 | 145 | 16 | 60 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| A1 | B | s | ||||
| 39.5 | 51.6 | 19.04 | 35000 | 23200 | 3400 | 3.2 |
