| MP | 3.1/4 | 1085-3.1/4G | 11 | |
|---|---|---|---|---|

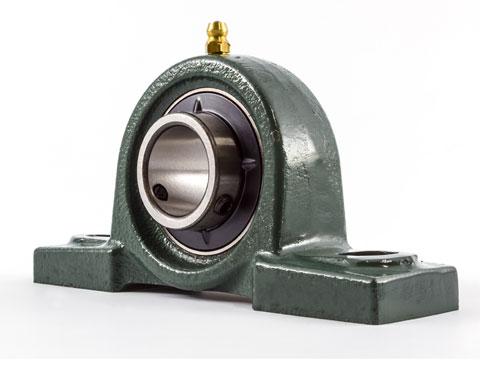

| Self Lube Pillow Block Unit | 3.1/4 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A |
| 381 | 101.6 | 31.8 | 203.2 | 317.5 | 260 | 24 | 101.6 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| A1 | B | s | ||||
| 68.3 | 85.7 | 34.15 | 83000 | 64000 | 2000 | 18.2 |
