| MP | 1.15/16 | 1055-1.15/16G | 6 | |
|---|---|---|---|---|

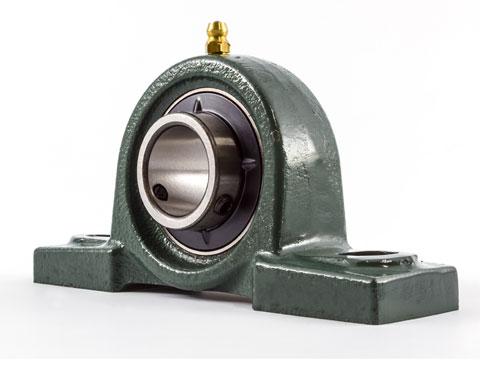

| Self Lube Pillow Block Unit | 1.15/16 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A |
| 219.5 | 63.5 | 24.8 | 129.5 | 178.5 | 162.5 | 16 | 60 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| A1 | B | s | ||||
| 39.5 | 55.6 | 22.24 | 43500 | 29200 | 3100 | 4 |
