MP | 1.11/16 | 1050-1.11/16G | 5 | |
---|---|---|---|---|

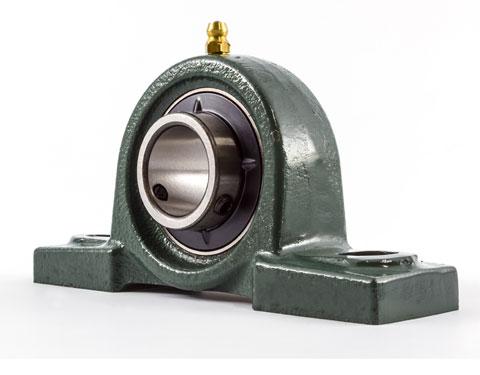

Self Lube Pillow Block Unit | 1.11/16 Inch Shaft Diameter | Set Screw Lock - Long Inner Ring | Bearing Insert | Casting Group |
Dimensions (mm) | |||||||
---|---|---|---|---|---|---|---|
L | H | H1 | H2 | Jmax | Jmin | G | A |
222.2 | 58.72 | 22.5 | 116.7 | 172.5 | 145 | 16 | 60 |
Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
---|---|---|---|---|---|---|
A1 | B | s | ||||
39.5 | 51.6 | 19.04 | 35000 | 23200 | 3400 | 3.2 |
