LFTC | 1 | A | 1225-1G | 3 |
---|---|---|---|---|

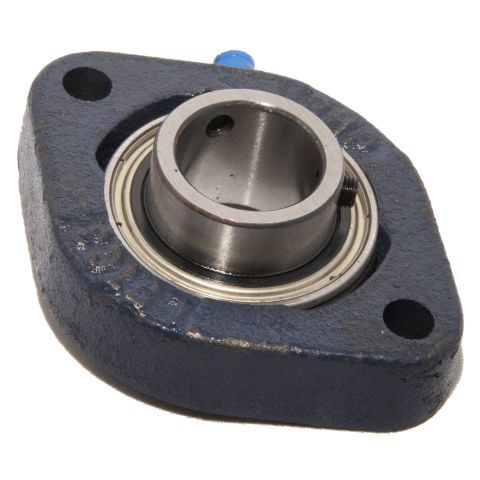

Self Lube Cast Iron Flange Bearing Unit | 1 Inch Shaft Diameter | Unit Fitted with Set Screw Lock Insert with Flush Inner Ring on One Side | Bearing Insert | Casting Group |
Dimensions (mm) | |||||||||
---|---|---|---|---|---|---|---|---|---|
L | H | J | G | A | A1 | A2 | A3 | B | B1 |
71 | 96 | 76 | 8 | 17.5 | 29.24 | 32.82 | 36.35 | 34 | 27.3 |
Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||||
---|---|---|---|---|---|---|---|---|
B2 | B3 | s | s1 | s2 | ||||
31.03 | 44.43 | 14.33 | 7.53 | 17.53 | 14000 | 7880 | 6250 | 0.5 |
