| FYM | 3. | TF | YAR216-300-2F |
|---|---|---|---|

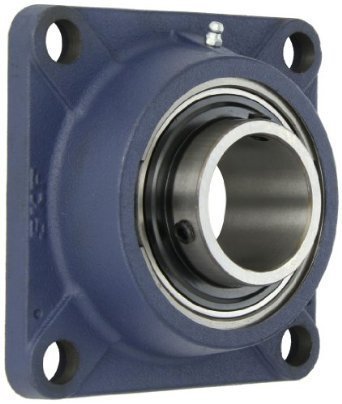

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 3. Inch - Bore Size | Grub Screw - 2F Series | Bearing Insert |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | A1 | A2 | B | J | L | G |
| 76.2 | 58.7 | 22.2 | 77.9 | 152.4 | 197 | 20 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | |
|---|---|---|---|---|---|---|
| s1 | T | |||||
| 47.7 | 82.6 | 72.8 | 53 | 2.16 | 2400 | 8 |
