| FYJ | 55 | TF | YAR211-2F |
|---|---|---|---|

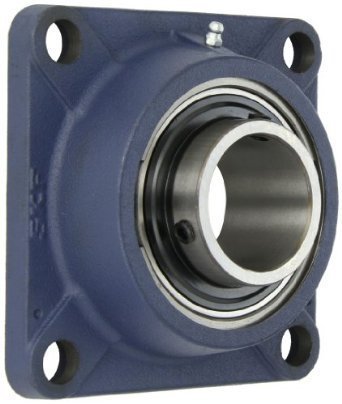

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 55mm - Bore Size | Grub Screw - 2F Series | Bearing Insert |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| d | A1 | A2 | B/B1 | Da | J | L | N |
| 55 | 43 | 20 | 55.6 | 150.8 | 130 | 162 | 19 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | ||
|---|---|---|---|---|---|---|---|
| G | s1 | T | |||||
| 16 | 33.4 | 58.4 | 43.6 | 29 | 1.25 | 3600 | 3.45 |
