| FY | 2.7/16 | WF | YEL212-207-2F |
|---|---|---|---|

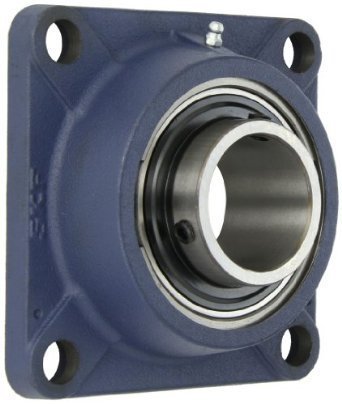

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 2.7/16 Inch - Bore Size | Eccentric Locking Collar - 2F Series | Bearing Insert |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | A1 | A2 | B/B1 | J | L | G |
| 61.913 | 52 | 17 | 77.8 | 143 | 175 | 16 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | |
|---|---|---|---|---|---|---|
| s1 | T | |||||
| 46.8 | 80.8 | 52.7 | 36 | 1.53 | 3400 | 5.05 |
