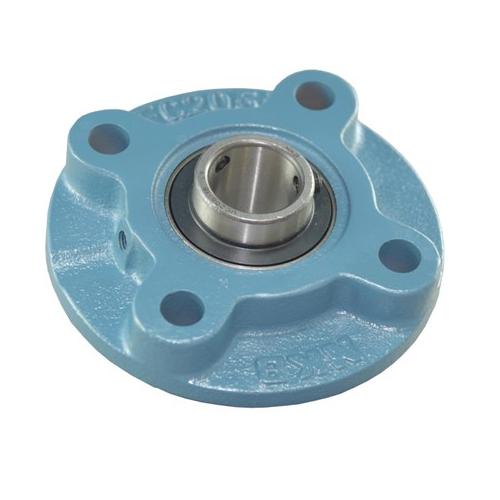

Unbranded self lube FC20/UCFC204 - 20MM 4 Bolt Round Cast Iron Housings unit with Grub Screw

UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required

Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

BEARING SIZES

SHAFT= 20mm
a = 100mm
e = 55.1mm
p = 78mm
f = 62mm


Bearing inserts also available UC204-20MM OR RHP1020-20MM

If you require any further information or sizes, please don‰۪t hesitate to contact Bearingtech
