| FY | 30 | TR | YAR206-2RF |
|---|---|---|---|

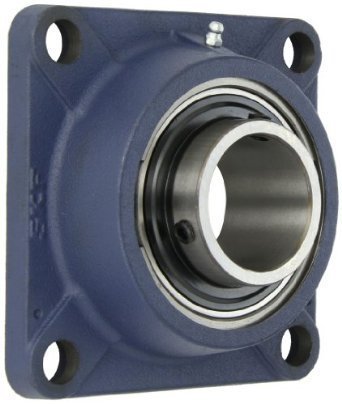

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 30mm - Bore Size | Grub Screw - 2RF Series | Bearing Insert |
| Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| d | A1 | A2 | B/B1 | Da | J | L | N |
| 30 | 32.5 | 13 | 38.1 | 93.7 | 82.5 | 108 | 11.5 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | ||
|---|---|---|---|---|---|---|---|
| G | s1 | T | |||||
| 10 | 22.2 | 42.2 | 19.5 | 11.2 | 0.475 | 3800 | 1.1 |
