| FY | 1.3/16 | FM | YET206-103 |
|---|---|---|---|

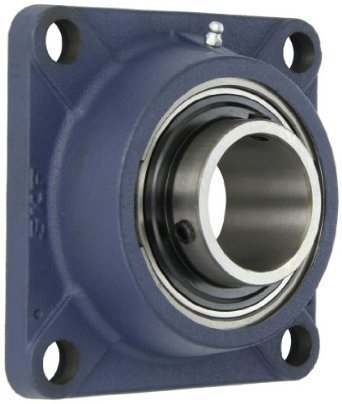

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 1.3/16 Inch - Bore Size | Eccentric Locking Collar | Bearing Insert |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | A1 | A2 | B/B1 | J | L | G |
| 30.163 | 32.5 | 13 | 35.7 | 82.5 | 108 | 10 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | |
|---|---|---|---|---|---|---|
| s1 | T | |||||
| 26.7 | 46.7 | 19.5 | 11.2 | 0.475 | 6300 | 1.1 |
