| FY | 1.1/4 | FM | YET207-104 |
|---|---|---|---|

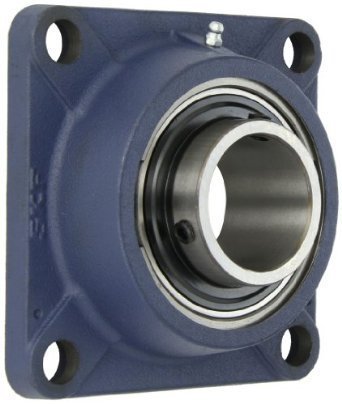

| Flanged Y-Bearing Unit, Cast Housing with Square Flange | 1.1/4 Inch - Bore Size | Eccentric Locking Collar | Bearing Insert |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| d | A1 | A2 | B/B1 | J | L | G |
| 31.75 | 34.5 | 13 | 38.9 | 92 | 118 | 12 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) | |
|---|---|---|---|---|---|---|
| s1 | T | |||||
| 29.4 | 50.4 | 25.5 | 15.3 | 0.655 | 5300 | 1.55 |
