| YAT | 203 | |
|---|---|---|

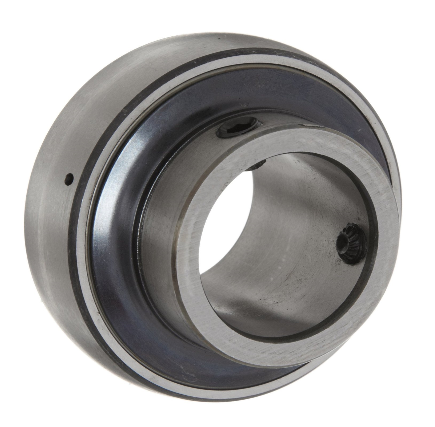

| Y-Bearing with Grub Screw | Metric Shaft | Contact Standard Integral Seal |
| Dimensions (mm) | |||||
|---|---|---|---|---|---|
| d | D | B | C | d1 | s1 |
| 17 | 40 | 22.1 | 12 | 24.2 | 15.9 |
| Dimensions (mm) | Dynamic Load (kN) | Static Load (kN) | Fatigue Load Limit (kN) | Limiting Speed (r/min) | Weight (Kg) |
|---|---|---|---|---|---|
| r1 | |||||
| 0.3 | 9.56 | 4.75 | 0.2 | 9500 | 0.07 |
