| 11 | 20 | 3/4 | CG |
|---|---|---|---|

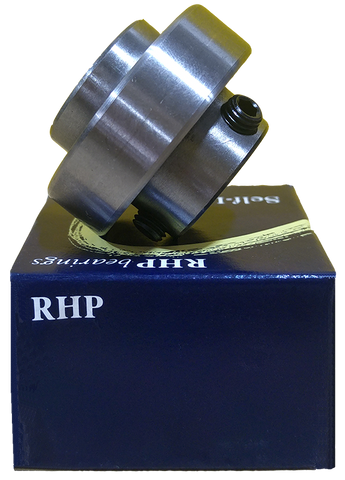

| Parallel Outside Diameter | Basic Group | 3/4 Inch Shaft Diameter | Parrallel Outside Diameter Insert with Grease Groove and Snap Ring Fitted |
| Dimensions (mm) | |||||
|---|---|---|---|---|---|
| Shaft Diameter | D | C | B | s | d1 |
| 3/4 | 47 | 14 | 31 | 12.73 | 28.3 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |
|---|---|---|---|---|---|
| M | r | ||||
| 5 | 1 | 12800 | 6650 | 6700 | 0.13 |
