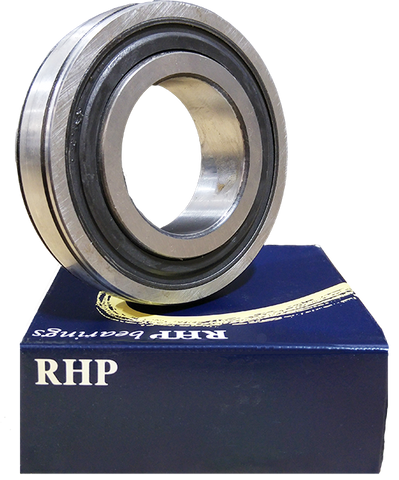

| 10 | 55 | 2 | KG | HE311-2 |
|---|---|---|---|---|
| Spherical Outside Diameter | Basic Group | 2 Inch Shaft Diameter | Re-greaseable, Taper Sleeve Lock | Sleeve Nut & Lock Washer |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| Sleeve Nut & Lock Washer | D | C | B4 | B5 | B6 | d |
| HE311-2 | 100 | 21 | 25 | 45 | 12 | 55 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| d1 | d4 | r | ||||
| 68.9 | 75 | 1.5 | 43500 | 29200 | 3100 | 0.95 |
