| 10 | 50 | KG | |
|---|---|---|---|

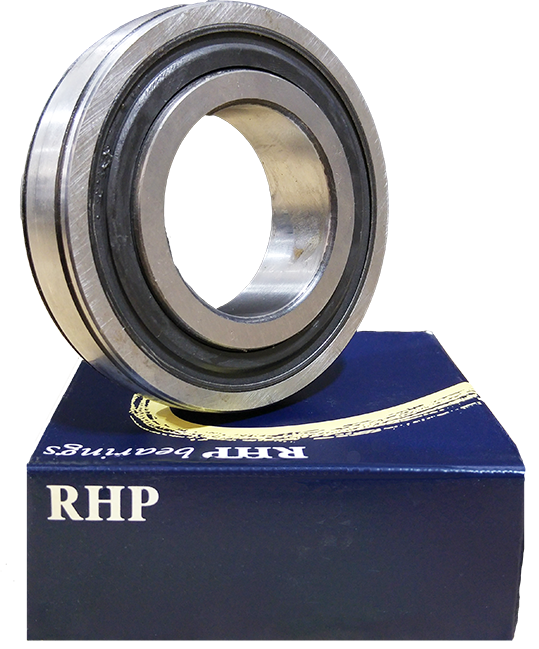

| Spherical Outside Diameter | Basic Group | Re-greaseable, Taper Sleeve Lock | Basic Insert Without Sleeve, Nut & Lockwasher |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| Sleeve Nut & Lock Washer | D | C | B4 | B5 | B6 | d |
| 90 | 20 | 24 | 42 | 12 | 50 | |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| d1 | d4 | r | ||||
| 62.4 | 70 | 1 | 35000 | 23200 | 3400 | 0.75 |
