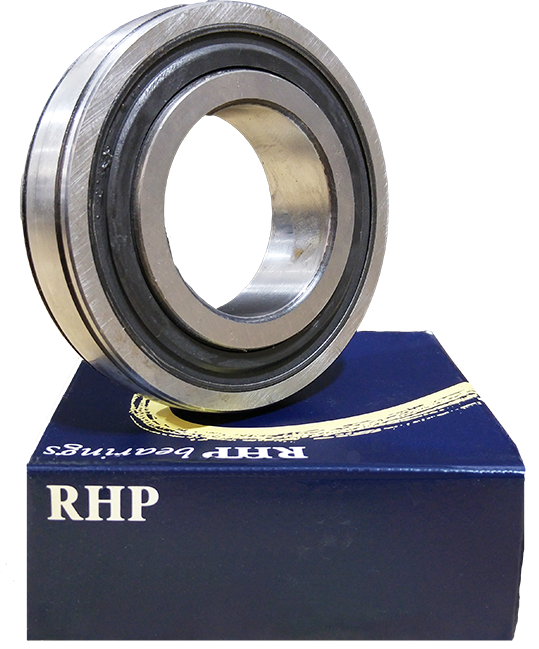

| 10 | 35 | KG | |
|---|---|---|---|
| Spherical Outside Diameter | Basic Group | Re-greaseable, Taper Sleeve Lock | Basic Insert Without Sleeve, Nut & Lockwasher |
| Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|
| Sleeve Nut & Lock Washer | D | C | B4 | B5 | B6 | d |
| 72 | 17 | 21 | 35 | 9 | 35 | |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | ||
|---|---|---|---|---|---|---|
| d1 | d4 | r | ||||
| 46.9 | 52 | 1 | 25700 | 15300 | 4500 | 0.42 |
