| SL | 45 | A | 1245-45G | 7 |
|---|---|---|---|---|

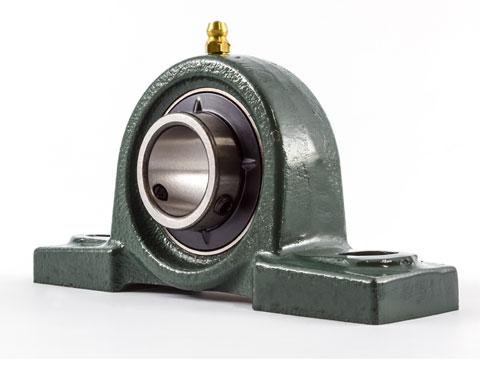

| Self Lube Pillow Block Unit | 45mm Shaft Diameter | Unit Fitted with Set Screw Lock Insert with Flush Inner Ring on One Side | Bearing Insert | Casting Group |

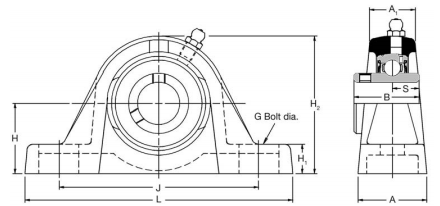

| Dimensions (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| L | H | H1 | H2 | Jmax | Jmin | G | A | A1 | B |
| 197.5 | 52.37 | 18.4 | 106.4 | 161.5 | 141.5 | 12 | 54 | 35 | 49.2 |
| Dimensions (mm) | Dynamic Load (N) | Static Load (N) | Max Speed (rpm) | Weight (Kg) | |||||
|---|---|---|---|---|---|---|---|---|---|
| B1 | B2 | B3 | s | s1 | s2 | ||||
| 41.2 | 43.73 | 56.33 | 19.04 | 11.04 | 21.43 | 32500 | 20500 | 3700 | 3 |
